A16.2 MEMBRANE
EQUATIONS OF
EQUILIBRIUM FOR
THIN-WALLED
PRESSURE
VESSELS
**

Pressure vessels are shell-type structures. Thin walled implies skin thickness is much less than the radius of curvature. The most common shapes used for pressure vessels are cylinders and spheres. Spherical pressure vessels are the most efficient. The skin is usually very thin, it cannot sopppurt any bending, only membrane stress. In these problems, the plane stress condition is assumed.

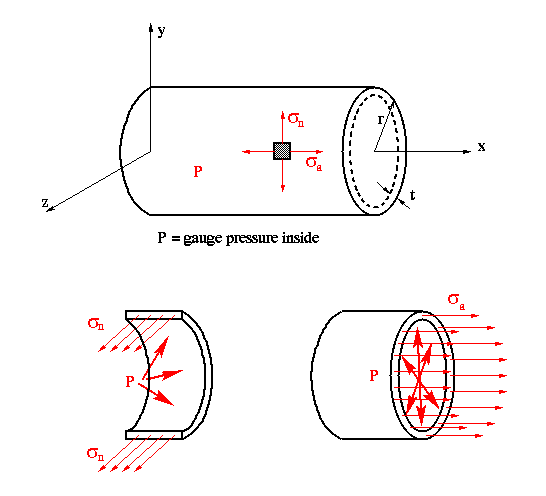

**Unstiffened (Monocoque) Cylindrical Pressure Vessels**

Hoop Stress

Axial Stress

Maximun Shear Stress

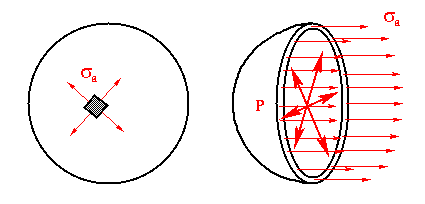

**Unstiffened Spherical Pressure Vessels**

Due to symmetry, the stresses exerted on all four faces of the element must be equal.

EXAMPLE
PROBLEMS

- Example 1 Membrane stress calculations
in a cylindrical pressure vessel
- Example 2 Design of a spherical
pressure vessel
- Example 3 Design of an idealized
monocoque fuselage structure

To Section A16.5
To Index Page of
Internal Pressure
