Centroid of Area- Exercise 2:

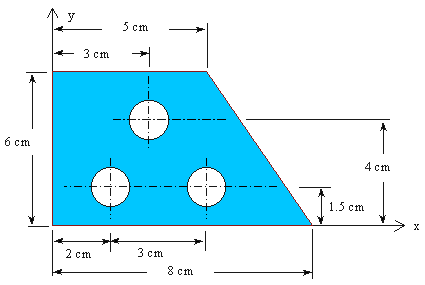

|Consider the quadrilateral area with three identical circular holes of 1-cm in diameter. Determine the location of the centroid with respect to the reference xy axes shown.|
Round up your answers to two decimal places. You can submit one answer at a time by leaving the other answer field blank or you can submit both answers together.
